技術參數
介質溫度： -20℃~+150℃
環境溫度： -20℃~+60℃
公稱壓力：1.6MPa
控製氣體：中性氣體，空氣
氣源壓力：0.3~0.8MPa
閥體材質：CF8,CF8M
閥座材質：PTFE
閥杆材質：304,316L
密封圈材質：NBR
適用介質：水、蒸汽、油、中性氣體
介質溫度： -20℃~+150℃
環境溫度： -20℃~+60℃
公稱壓力：1.6MPa
控製氣體：中性氣體，空氣
氣源壓力：0.3~0.8MPa
閥體材質：CF8,CF8M
閥座材質：PTFE
閥杆材質：304,316L
密封圈材質：NBR
適用介質：水、蒸汽、油、中性氣體
TECHNICAL PARAMETERS
Medium temperature:-20℃~+150℃
Ambient temperatur:-20℃~+60℃
Nominal pressure:1.6 MPa
Control gas:gas,air
Air pressure:0.3-0.8 MPa
Body material:CF8,CF8M
Seat material:PTFE
Stem material:304,316L
Sealing ring materiat:NBR
Applicable medium:water,vapor,oil,neutral gas
Medium temperature:-20℃~+150℃
Ambient temperatur:-20℃~+60℃
Nominal pressure:1.6 MPa
Control gas:gas,air
Air pressure:0.3-0.8 MPa
Body material:CF8,CF8M
Seat material:PTFE
Stem material:304,316L
Sealing ring materiat:NBR
Applicable medium:water,vapor,oil,neutral gas

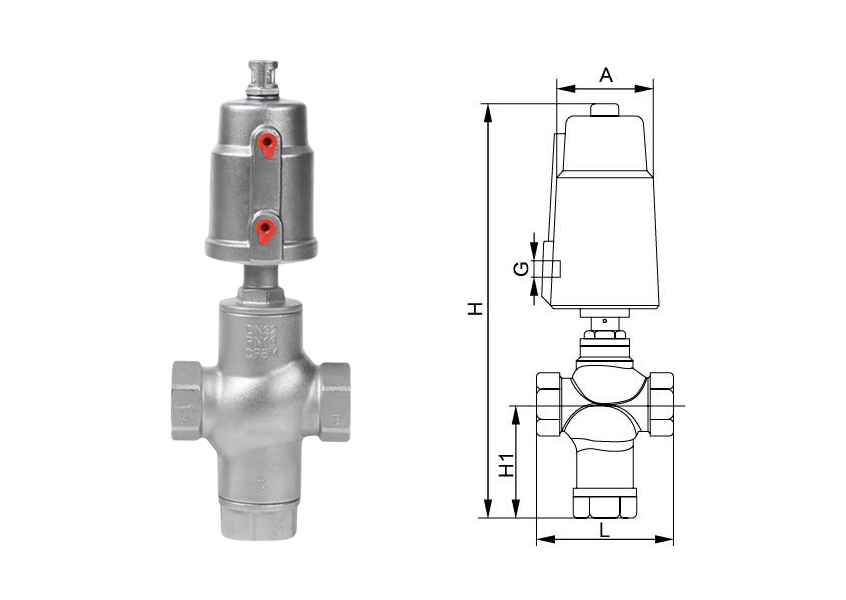

主要連接尺寸 Main connection size
| DN | L | A | H | H1 | G |
執行器 Actuator |
|---|---|---|---|---|---|---|
| 15 | 68 | 62 | 213 | 52 | G1/8" | Φ50 |
| 20 | 73 | 62 | 229 | 59 | G1/8" | Φ50 |
| 25 | 91 | 62 | 240 | 67 | G1/8" | Φ50 |
| 32 | 114 | 76 | 302 | 86 | G1/8" | Φ63 |
| 40 | 115 | 76 | 310 | 90 | G1/8" | Φ63 |
| 50 | 137 | 96 | 330 | 100 | G1/8" | Φ80 |
工作原理
本閥門共有三處通孔，可實現換向分流或混合功能，在一定程度上可替代兩通截止閥。閥門在非工作狀態時，由於彈簧力的作用，閥門C端常閉，B端常開；當執行器活塞被壓縮氣體作用時，閥門C端打開，B端關閉。雙作用形式時，靠壓縮空氣控製閥門開啟或關閉。
The valve has three through holes,which can realize the function of reversing shunt or mixing,and can replace the two-way stop valve to a certain extent.When the valve is in non-working state,the C end of the valve is normally closed and the B end is normally open due to the action of the spring force.When the actuator piston is acted on by compressed gas,the Cend of the valve is opened and the B end is closed.In double- acting form,the valve is opened or closed by compressed air control.
